Description

Product details

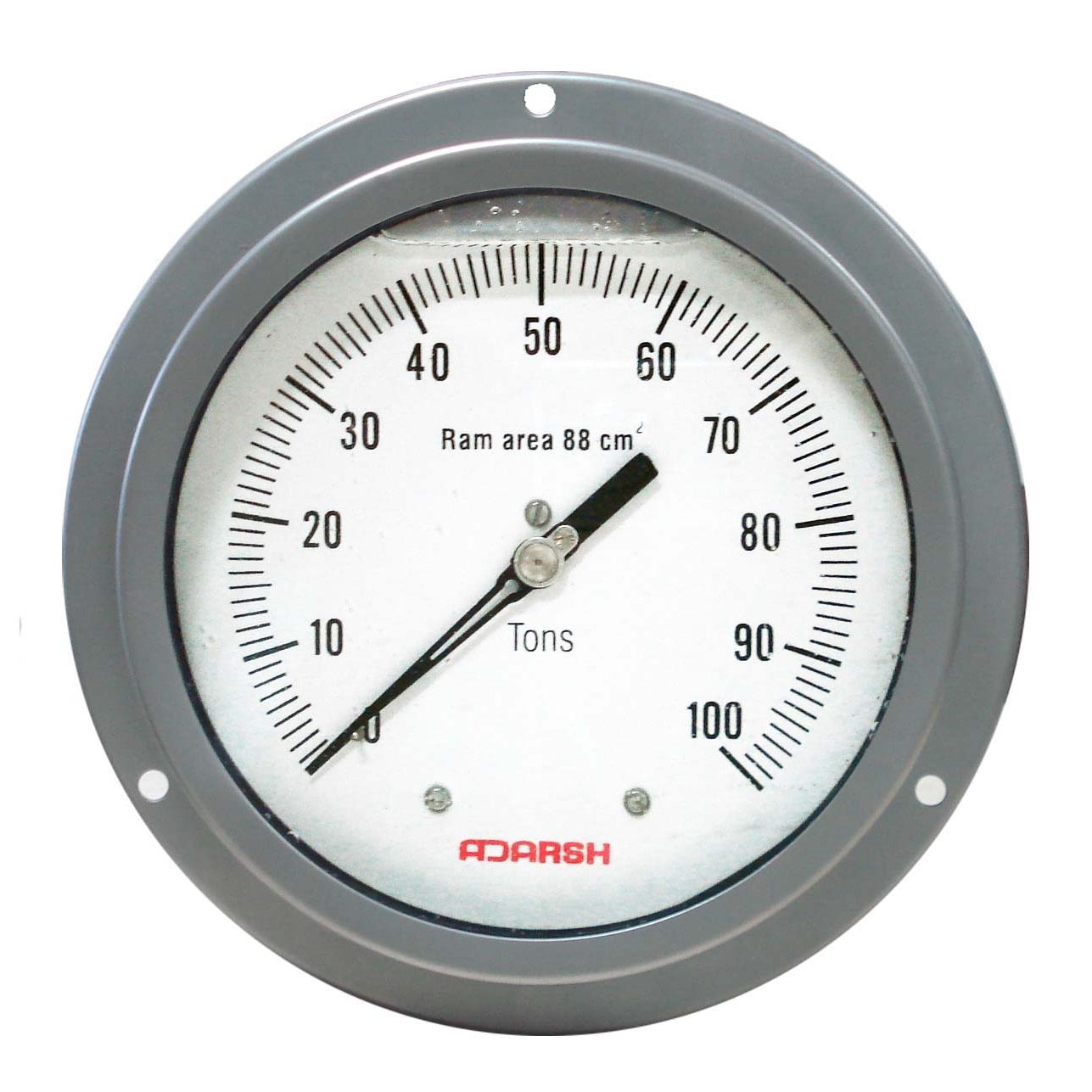

Load Gauges are available in bottom or back mounting. Scales in KN, N, Tons. Used to measure load in compression / cube and hydraulic machines. Specifications :- 4 Available in dial size 150mm (6"), 200mm (8"), 250mm (10") 4 Dial Scale in KN (Kilo Newton) or Ton 4 SS316 Bourdon and Socket, SS304 Movement 4 Stainless Steel SS304 Case and Ring 4 Liquid Filling Option (Glycerin or Silicon) for 6" and 10" dial sizes 4 Socket Welded to Case (6" Dial Size) 4 3/8”, ½” bsp or npt connection 4 Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp Mounting 4 Accuracy ±1% F.S.D. for 6", 8" & 10" Options Available :- 4 Custom Designed Dials 4 Maximum Pressure Indicating Pointer 4 Accessories: Gauge Savers to protect gauge from over pressure
