Description

Product details

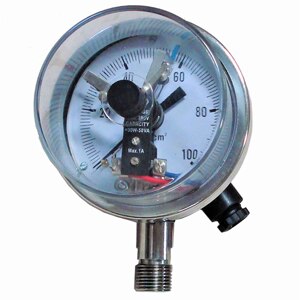

Electric contact pressure gauges are suggested where application is for control of pressure & for Audible or visible alarms. These gauges give electrical output which can be used to turn a motor on/off & similar applications. These gauges can be configured for a 1NO+1NC output or 1NO or 1NC or 2NO or 2NC output. Specifications 4 Available in 4" (100mm) and 6" (150mm) Dial Sizes 4 Contacts: 1NO+1NC, 1NO, 1NC, 2NO, 2NC, 2NO+2NC 4 Contact Rating: 230V, 100mA 4 SS316 Bourdon and Socket, SS304 Movement 4 Stainless Steel SS304 Case and Ring IP65 4 3/8”, ½” bsp or npt connection 4 Mounting: Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp Mounting Pressure Range Selection :- Single Scale kg/cm2 or bar 0-4 0-6 0-10 0-16 0-25 0-40 0-60 0-100 0-160 0-250 0-400 0-600 0-1000 Compound Ranges -1x3 -1x5 -1x9 -1x15 -1x24 Other Units: psi, Kpa, Mpa also available Custom Ranges also available
