Our Products

The Siphon Tube is connected between the pressure gauge & process in applications where high temperature vapours or fluids are present or temperature above 65 Deg C for eg. steam. It acts as a cooling coil and protects the gauge from high temperature vapours, by dissipating heat. A gauge cock is generally connected between the pressure gauge and syphon for isolation.Features4 Available in U type and Pigtial / Coil Type4 Material SS316 or SS304 or C.S.4 1/4
Syphons
VIEW DETAILS
Manifolds are used for flow control. 3 way or 5 way type manifolds are used along with Differential Pressure Transmitter / Differential Gauges.Features:-4 Available in 2 valve / 3 valve / 5 valve manifold4 Material SS316 / SS3044 ½” npt connection or other4 pressure rated 6000 psi and higher
Manifolds
VIEW DETAILS
Needle Valves are used for flow control, isolation purpose, on /off applications. Suitable for pressure upto 400 kg/cm2 and higher.Features :-4 Material SS316 or SS3044 1/4
Needle Valves
VIEW DETAILS
* Standard Threaded Sealed* Compact Sealed* Flanged End Diaphragm - Type 2* Flanged End Diaphragm - Type 3* Capillary Diaphragm Sealed* Triclover End Diaphragm Seal* SMS/DN/IDF/RJT End Diaphragm Seal* Homogenizer Diaphragm Seal* Paper Diaphragm Seal* Wafer (Pan Cake) Diaphragm Seal* Any Customized Diaphragm Seal can be made for your Application
Diaphragm Seals
VIEW DETAILS

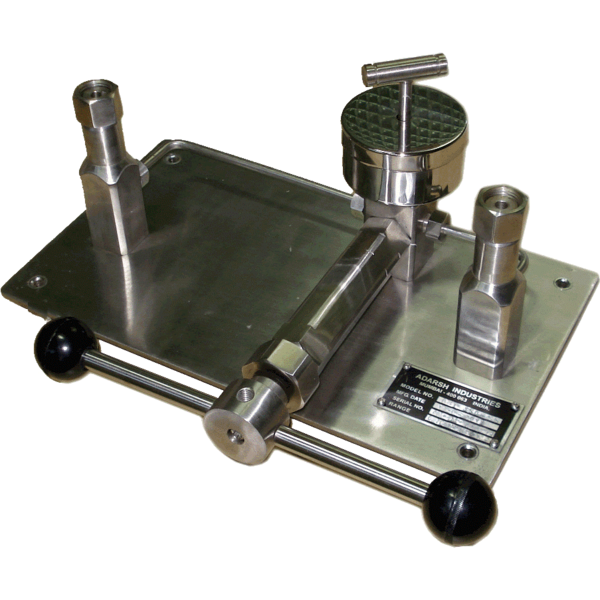

Pressure Comparator
Pressure Comparator
VIEW DETAILS
Dead Weight Tester
Dead Weight Tester
VIEW DETAILS
Temperature Bath
Temperature Bath
VIEW DETAILS

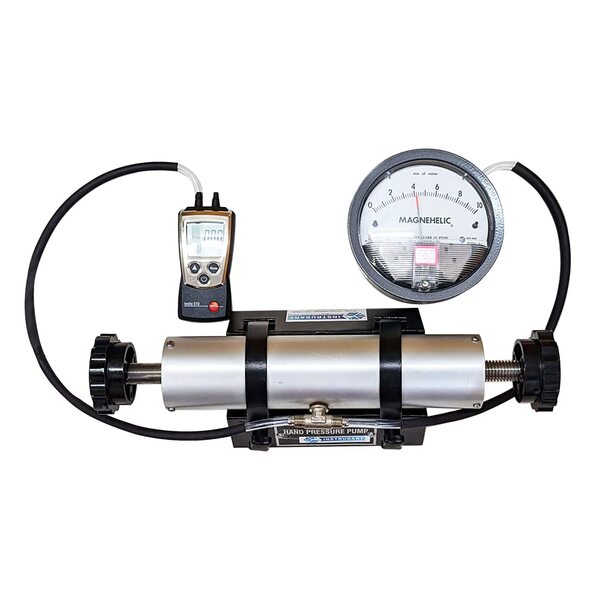

(AH2-LP Pump + EN600 Manometer)Accuracy ±0.2% / ± 0.1% FSPump range -2000 to + 4000mmwcManometer range starts from 200 upto10000mmwc & vacuumFine adjustment as low as 1Pa
Magnehellic Gauge Calibrator
VIEW DETAILS

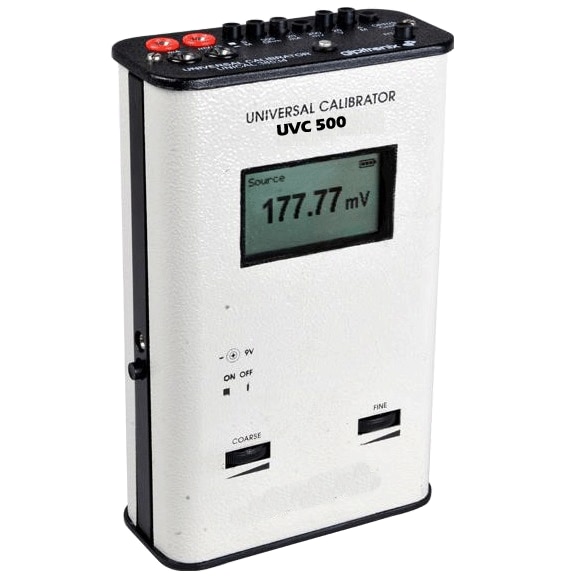

UVC500 ModelFeatures :-Source & Measurement of RTD, Thermocouple, mA, V, mV, ohmsDirect reading in deg C for rtd (10 types) & thermocouple (8 types)Accuracy : 0.02% of rdg ± 3 dgt for mA/V/mV/ohms2 years standard warranty
Portable Multifunction Universal Calib
VIEW DETAILS

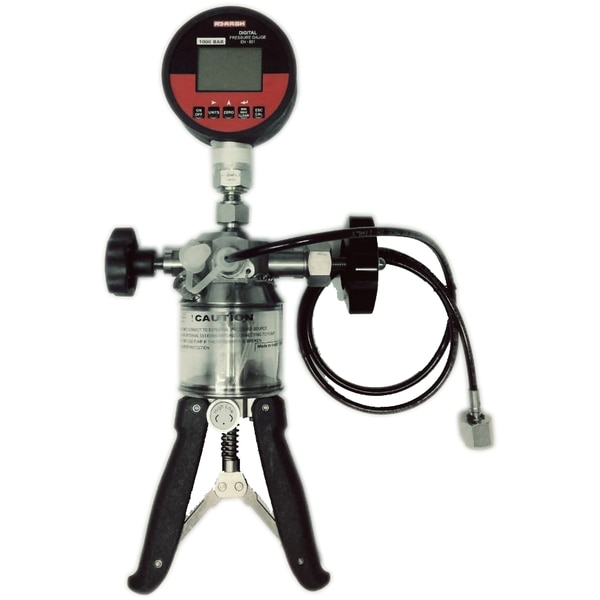

Handheld Pressure Calibrators are and ideal tool for checking & Calibration of Pneumatic Digital Indicators, Manometers, Pressure Transducers / Transmitters, Pneumatic Loops etc. Generates (Pneumatic) Pressure / Vacuum through convenient Scissor action / minimum effort, Fine Adjustment Vernier.Model Selection :- Model RangesPHP2 -0.9 (vacuum) to 2 barPHP10 -0.9 (vacuum) to 10 barPHP25 -0.9 (vacuum) to 25 barPHP35 -0.9 (vacuum) to 35 barPHP40 -0.9 (vacuum) to 40 barSpecifications:-Weight: Approx 750gms OnlyInstrument Dimension (H x W x D) : 230 x 140 x 65 mmDevice Under Test Port : 1/4″ (F) BSP Master Instrument Port : 3/8” (F) BSPFlexible Nylon Hose (1 Meter) with Swivel Adaptor to connect devices under testKey Features:Ideal for on-site pressure calibrationAvailable in different ranges upto 40 barVaccum upto -0.9 bar on all modelsAvailable with Digital/Analog Master Gauges upto 0.05% AccuracyVery Light weight 750 gms onlyNo oil required – All Models are Pneumatic operated
Hand Pump Pressure Calibrators
VIEW DETAILS
When you are looking for Inhouse Pressure Calibration of Pressure Instruments ADARSH AH1/AH2 series Models are the ideal tool. They offer fast pressure generation and are ideal for operating for many years. These Bench Pressure Calibrator are suitable for Calibration and Testing of pressure gauges, pressure transmitters, pressure switches, valves. Different Models are available for Vacuum and Pressure upto 1000 kg/cm2 max. Models AH1-150 and AH1-400 can be customized to be offered in portable versions for on-site calibration. These comparison testers are hydraulic based and can be used with oil (preferred) or water.Along with these testers we can also offer Digital Master Pressure Gauges (0.1% /0.05% F.S. Accuracy) or Mechanical Type Master Gauges in 6″/8″/10″ Dial Size (0.5% / 0.25% F.S. Accuracy)Model Selection :Model Ranges Pressure CalibratorsAH1-150 0 to 150 kg/cm2AH1-400 0 to 400 kg/cm2AH1-700 0 to 1000 kg/cm2Vacuum CalibratorsAH2-107 -0.95 to 7 kg/cm2Low Pressure CalibratorsAH2-9000M -6000 to +9000mmwc Key Features :-* Long Life, Minimum Maintanence* Fast Pressure Generation* Minimum Force Required for Pressure Generation* Available in Many Ranges upto 1000 bar* Vaccum Testers also available* Portable Version of AH1-150 and AH1-400 for Site calibration* Available with Digital/Analog Master Gauges upto 0.05% Accuracy* High Volume Capacity for Testing 6″/10″ gauges* Best for Lab Use* Most Parts made from Stainless Steel
Pressure Calibrator
VIEW DETAILS

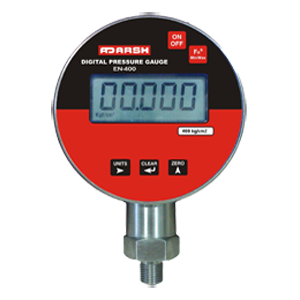

Product Description:SpecificationsADARSH make wide range of Digital Pressure & Temperature Gauges. These instruments are used in all types of industries like Sugar, Fertilizer, Chemical, Cement, Power Plants, Food Industries, Pharmaceuticals & other Process Industries and OEM's.
Digital Pressure Gauges
VIEW DETAILS

Filter using tags

ManifoldsGauge AccessoriesPressure ComparatorPressure Calibrators & PumpsPressure RecorderPressure GaugesStainless Steel Pressure GaugesDiaphragm SealsTest / Master Pressure GaugesDead Weight TesterDigital Temperature GaugeTemperature GaugesBimetal ThermometerStandard Pressure GaugesAmmonia GaugesLiquid Filled Pressure GaugesHigh Accuracy Digital Pressure GaugesGas Filled ThermometerSyphonsGauge SaversDifferential Gauges - Low RangeGauge CocksSchaffer Diaphragm Pressure GaugesPressure calibratorspressure comparatorcalibration instrumentProcess Pressure GaugesLow Cost Shaffer GaugeSanitary SMS GaugesSealed Diaphragm Pressure GaugesNeedle ValvesElectric Contact GaugesDraft GaugesMercury in Steel ThermometerRefrigeration ThermometerIndustrial Thermometer - V ShapedDuplex Pressure GaugesCapsule Pressure GaugesFreon GaugesTriclover GaugesExhaust Thermometer (Antivibration Thermometer)Pulsation DampnersAnti Vibration Pressure GaugeDifferential Pressure GaugesAnti Pulsation Pressure GaugesTemperature BathPressure CalibratorPressure CalibratorsHomogenizer Pressure GaugesHomogenizer Gauges
The Siphon Tube is connected between the pressure gauge & process in applications where high temperature vapours or fluids are present or temperature above 65 Deg C for eg. steam. It acts as a cooling coil and protects the gauge from high temperature vapours, by dissipating heat. A gauge cock is generally connected between the pressure gauge and syphon for isolation.Features4 Available in U type and Pigtial / Coil Type4 Material SS316 or SS304 or C.S.4 1/4
View Details
Syphons
Manifolds are used for flow control. 3 way or 5 way type manifolds are used along with Differential Pressure Transmitter / Differential Gauges.Features:-4 Available in 2 valve / 3 valve / 5 valve manifold4 Material SS316 / SS3044 ½” npt connection or other4 pressure rated 6000 psi and higher
View Details
Manifolds
Needle Valves are used for flow control, isolation purpose, on /off applications. Suitable for pressure upto 400 kg/cm2 and higher.Features :-4 Material SS316 or SS3044 1/4
View Details
Needle Valves
* Standard Threaded Sealed* Compact Sealed* Flanged End Diaphragm - Type 2* Flanged End Diaphragm - Type 3* Capillary Diaphragm Sealed* Triclover End Diaphragm Seal* SMS/DN/IDF/RJT End Diaphragm Seal* Homogenizer Diaphragm Seal* Paper Diaphragm Seal* Wafer (Pan Cake) Diaphragm Seal* Any Customized Diaphragm Seal can be made for your Application
View Details
Diaphragm Seals
Pressure Comparator
View Details
Pressure Comparator
Dead Weight Tester
View Details
Dead Weight Tester
Temperature Bath
View Details
Temperature Bath
(AH2-LP Pump + EN600 Manometer)Accuracy ±0.2% / ± 0.1% FSPump range -2000 to + 4000mmwcManometer range starts from 200 upto10000mmwc & vacuumFine adjustment as low as 1Pa
View Details
Magnehellic Gauge Calibr
UVC500 ModelFeatures :-Source & Measurement of RTD, Thermocouple, mA, V, mV, ohmsDirect reading in deg C for rtd (10 types) & thermocouple (8 types)Accuracy : 0.02% of rdg ± 3 dgt for mA/V/mV/ohms2 years standard warranty
View Details
Portable Multifunction U
Handheld Pressure Calibrators are and ideal tool for checking & Calibration of Pneumatic Digital Indicators, Manometers, Pressure Transducers / Transmitters, Pneumatic Loops etc. Generates (Pneumatic) Pressure / Vacuum through convenient Scissor action / minimum effort, Fine Adjustment Vernier.Model Selection :- Model RangesPHP2 -0.9 (vacuum) to 2 barPHP10 -0.9 (vacuum) to 10 barPHP25 -0.9 (vacuum) to 25 barPHP35 -0.9 (vacuum) to 35 barPHP40 -0.9 (vacuum) to 40 barSpecifications:-Weight: Approx 750gms OnlyInstrument Dimension (H x W x D) : 230 x 140 x 65 mmDevice Under Test Port : 1/4″ (F) BSP Master Instrument Port : 3/8” (F) BSPFlexible Nylon Hose (1 Meter) with Swivel Adaptor to connect devices under testKey Features:Ideal for on-site pressure calibrationAvailable in different ranges upto 40 barVaccum upto -0.9 bar on all modelsAvailable with Digital/Analog Master Gauges upto 0.05% AccuracyVery Light weight 750 gms onlyNo oil required – All Models are Pneumatic operated
View Details
Hand Pump Pressure Calib
When you are looking for Inhouse Pressure Calibration of Pressure Instruments ADARSH AH1/AH2 series Models are the ideal tool. They offer fast pressure generation and are ideal for operating for many years. These Bench Pressure Calibrator are suitable for Calibration and Testing of pressure gauges, pressure transmitters, pressure switches, valves. Different Models are available for Vacuum and Pressure upto 1000 kg/cm2 max. Models AH1-150 and AH1-400 can be customized to be offered in portable versions for on-site calibration. These comparison testers are hydraulic based and can be used with oil (preferred) or water.Along with these testers we can also offer Digital Master Pressure Gauges (0.1% /0.05% F.S. Accuracy) or Mechanical Type Master Gauges in 6″/8″/10″ Dial Size (0.5% / 0.25% F.S. Accuracy)Model Selection :Model Ranges Pressure CalibratorsAH1-150 0 to 150 kg/cm2AH1-400 0 to 400 kg/cm2AH1-700 0 to 1000 kg/cm2Vacuum CalibratorsAH2-107 -0.95 to 7 kg/cm2Low Pressure CalibratorsAH2-9000M -6000 to +9000mmwc Key Features :-* Long Life, Minimum Maintanence* Fast Pressure Generation* Minimum Force Required for Pressure Generation* Available in Many Ranges upto 1000 bar* Vaccum Testers also available* Portable Version of AH1-150 and AH1-400 for Site calibration* Available with Digital/Analog Master Gauges upto 0.05% Accuracy* High Volume Capacity for Testing 6″/10″ gauges* Best for Lab Use* Most Parts made from Stainless Steel
View Details
Pressure Calibrator
Product Description:SpecificationsADARSH make wide range of Digital Pressure & Temperature Gauges. These instruments are used in all types of industries like Sugar, Fertilizer, Chemical, Cement, Power Plants, Food Industries, Pharmaceuticals & other Process Industries and OEM's.
View Details
Digital Pressure Gauges
